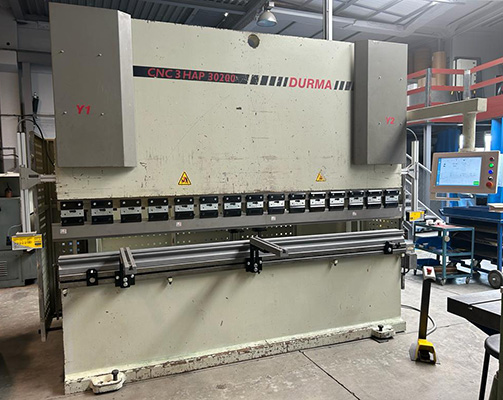

DURMA electronic press brake mod.HAP 3 CNC 30200

Opportunity: DURMA electronic press brake mod.HAP 3 CNC 30200, second hand machine. Ref. 361

Plegadora electrónica DURMA mod.HAP 3 CNC 30200 de ocasión
Plegadora electrónica DURMA mod.HAP 3 CNC 30200 de ocasión



FEATURES

  • Useful length: 3.100 mm.
  • Power: 200 TN.
  • Approach speed: 100 mm/s.
  • Working speed: 9 mm/s.
  • Return speed: 90 mm/s.
  • Motor power: 15 Kw.
  • Throat depth: 500 mm.
  • Between tables: 2.550 mm.
  • Working height : 900 mm.
  • Height punch 10.10: 67 mm
  • Height matrix “V”:60 mm
  • Universal clamp: 120 mm
  • Weight: 11.000 Kg.
  • Year of manufacture: 2005

stAndarD EQUIPMENT

  • According to CE rules and TÜV homologation
  • Promecam clamping system with bending compensation
  • Matrix Promecam 4 “V” self-centred ref. 20.09 and punch ref. 10.10 – 86º.
  • Motorized anti-bending table („C“ axis).
  • 800 mm motorized back gauge with ball screw („X“ axis) and two manually height adjustable fingers („R“ axis type).
  • „Y1 – Y2“ axis
  • 2 front supports with „T“ grooves and retractable millimetre stops.
  • Operation by electric pedals and low voltage bi-manual push button with emergency stop.
  • Lateral and rear protections according to CE standards.
  • CNC CYBELEC CybTouch 15.
  • Emergency stops
  • Bosch-Rexroth hydraulic system.
  • Siemens electrical system.
