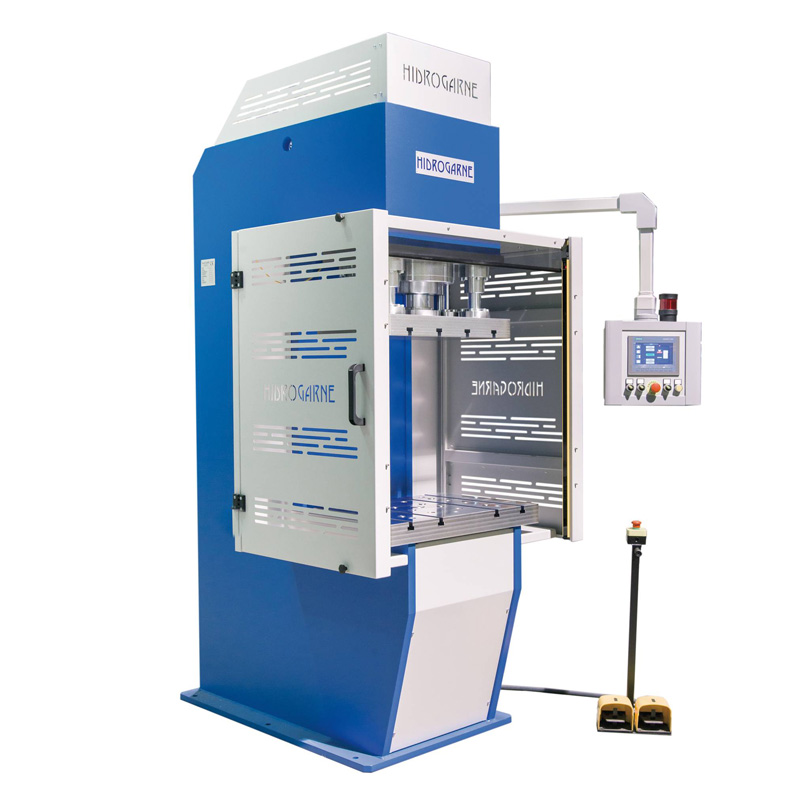

Prensas hidráulicas serie CF motorizadas con cuello de cisne de alta producción

We would like to introduce our new motorized hydraulic presses CF- Series with throat depth to perform works of medium and high production in stamping, die-cutting and deep-drawing.

The CF-series HIDROGARNE has been designed with three different power ranges, 80t, 100t y 150t,  and they feature a wide range of uses including the possibility of incorporating these machines in automatic production lines.

As other HIDROGARNE hydraulic presses, the hydraulic presses CF series work with hydraulic pressure lower than 290 bar to ensure the greater durability of the hydraulic system as a whole.

CF-series hydraulic presses consist of an electro welded structure made solely of ST-52.3 steel. They are stabilised and machined at the end of the structural welding process, calculated and designed by finite software with level 5 structural resistance. With all this, we always guarantee a perfect parallelism and our high precision and quality standards.

These hydraulic presses series CF are equipped with a mechanized lower and upper CK-42 stainless steel table with four “T” DIN-650 grooves. The main cylinder is single-acting and it has two lateral cylinders of double-acting installed for  quick approaching and returning.

The electric panel features a Siemens NC enabling the user to select the desired type of work in a manual or automatic position, regulate the working pressure and choose the high or low approach speed. In addition, it allows the programming of 99 different working cycles.

The CF-series hydraulic presses incorporates lateral protections which are meant to open, with level IV photoelectrical sensors situated at the front to ensure safety.

The HIDROGARNE  CF-series  is an accurate solution and a solution of quality to perform your medium and high production of stamping, die-cutting and deep-drawing works.
