The PE series mechanical presses are suitable for a wide variety of applications to industries that perform punching, stamping, cutting and deep drawing works.

They are made of S355JR steel, stabilized, and mechanized at the end of the welding process to ensure a perfect parallelism and precision. Calculated and designed with finite element software. With all this, we always guarantee our high standards of precision and quality.

The rod is built of high-strength forged steel and high-performance alloy bushings.

To guarantee perfect maintenance and operation, all our range is equipped with centralized automatic lubrication with a programmable progressive system.

  • C type 4 guided ram mechanical presses

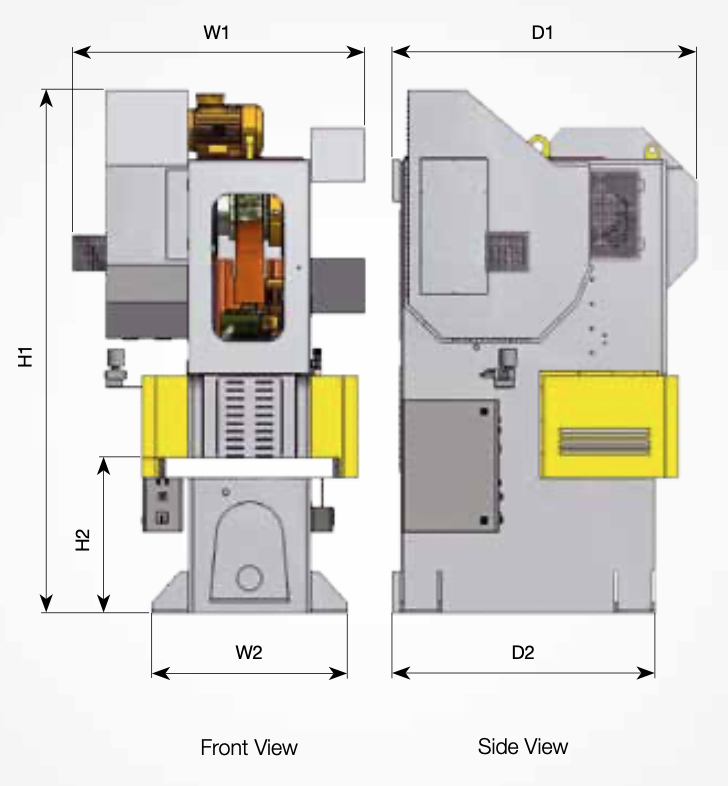

    C type 4 guided ram mechanical presses

The transmission between the motor shaft and the eccentric shaft is by means of a gearbox with ground gears, this system allows us to work with a high tonnage at relatively low nominal speeds.

The slide is made of welded and stabilized steel with 4 ground prismatic guides. It incorporates a base for the recovery of the excess oil from the lubrication.

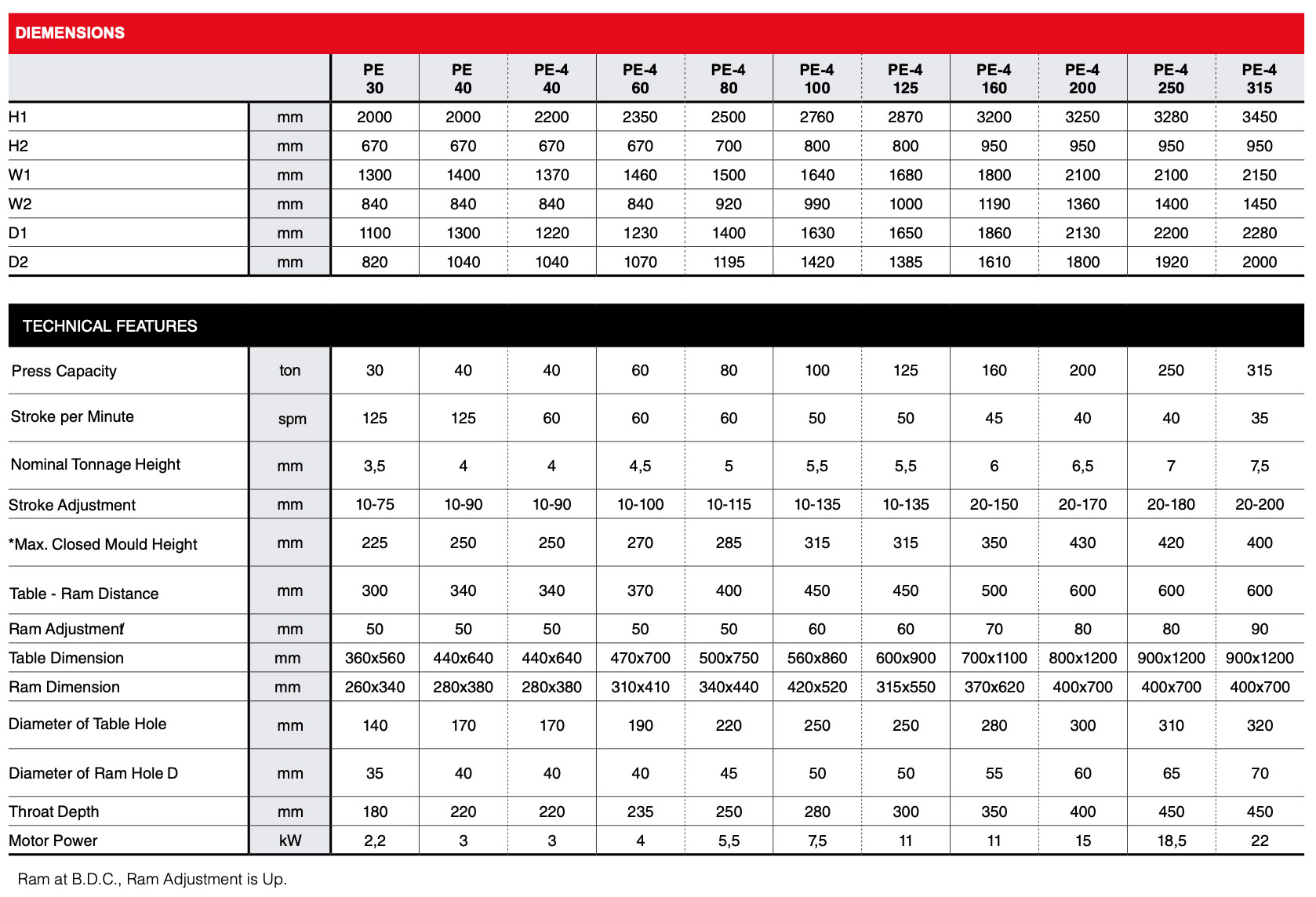

Available with a power from 40 to 315 Tn.


An overload protection unit is installed to protect machine components and installed tools. A safety valve discharges the oil from the chamber when for any reason the reached set value is higher than the nominal load.


The clutch-brake is electropneumatic, equipped with a double safety body solenoid valve and crossflow.

The pneumatic system includes a compensation tank, a regulator-lubricator filter, a control pressure switch, and a safety valve.


The control panel features a switch enabling the user to select the desired type of work in manual, semi-automatic or automatic position. Electrical and hydraulic manoeuvres are redundant and self-controlled. They incorporate an additional PLC for manoeuvre and safety.

Operation is carried out by low voltage two-hand push button and electric pedal.

Safety is guaranteed using lateral opening protections with level IV safety light curtains placed on the sides of the work area.

It meets and satisfies all the essential health and safety requirements in accordance with the CE standard.



  • Pneumatic Clutch & Brake Combination
  • Dual Safety Valve
  • Both Hands Control
  • Foot Pedal Control
  • Central Motorized Lubrication System
  • Automatic Ram Adjustment (*)
  • Cam Limit with Proximity Switch
  • Programmable Control System (PLC)
  • Conformity of CE Machinery Directives
  • Photocell Safety Guard
  • Hydraulic Overload Protector
  • Adjustable Stroke Movement
  • Standard Anti-Vibration Pads
  • 2 Year Warranty (**)


  • Automatic ram adjustment (from 60 to 125 Tn) Inverter (speed variation)
  • Pneumatic or Hydraulic die ejector or cushion Lower auxiliar table
  • Strain gauge system
  • NC digital display with memories
