HIDROGARNE Hydraulic presses

HIDROGARNE is specialized in the production of special presses adapted to specific needs.

We have at our disposal over 54 models ranging from 50 Tons to 500 Tons capacity, classified in 11 series.

C-frame hydraulic presses

Motorized hydraulic presses with C-frame: CD series

CD series

Hydraulic presses with throat depth (C-frame)

C-frame presses with double effect and anti-gyro cylinder and the front is graphed and has sensors, operation by two-hand push-buttom. Allows installation of hydraulic cushion or ejector.

Motorized hydraulic presses with C-frame: CM series

CM series

Hydraulic presses with throat depth (C-frame) and top table

C-frame presses with double effect and anti-gyro cylinder and the front is graphed and has sensors, electronic pedal-controlled. Allows installation of hydraulic cushion or ejector.

C-frame motorized hydraulic presses of high production: CF series

C-frame presses with to perform work involving deep-drawing, stamping, die-cutting, forming, etc. for medium and high volumes. Main cylinder is single-acting and 2 double-acting lateral cylinders. The control panel features a Siemens NC permits the programming of 99 different working cycles.

Deep drawing and forming presses

Motorized hydraulic presses with a solid-arch monoblock: R series

R series

Hydraulic presses with solid-arch monoblock

Motorized deep drawing and forming presses with a solid-arch monoblock, double effect and anti-gyro cylinder and the front is graphed and has sensors, electronic pedal-controlled. Allows installation of hydraulic cushion or ejector.

Motorized deep drawing and forming presses with 4 cylindrical columns: M series

M series

4-cylindrical column hydraulic press

Motorized deep drawing and forming presses with 4 cylindrical column, personalised according to the needs of each different user.

Cambering and straightening presses

Motorized cambering and straightening presses with sliding frame and moveable head: T series

T series

Hydraulic presses with sliding bridge and headstock lateral displacemen

Motorized cambering and straightening presses with sliding frame and moveable head. Double effect and anti-gyro cylinder and the front is graphed and has sensors, controlled via a movable console. Allows installation of hydraulic ejector.

Motorized cambering and straightening horizontal presses: HV series

HV series

Cambering and straightening presses

Cambering and straightening presses to perform works involving the straightening and bending of profiles, bars and beams. The horizontal design of the machine permits an easy handling of large beams and profiles.

Workshop presses

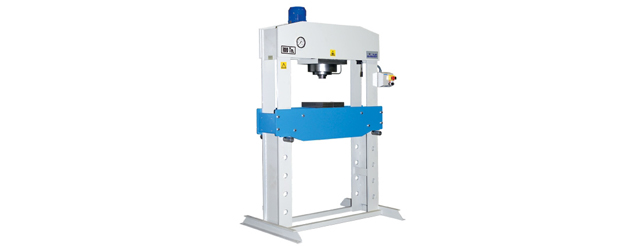

Motorized workshop presses with double stanchions S series

S series

Motorized hydraulic presses of double stanchion

Motorized workshop presses with double stanchions, double effect cylinder and hand operated control valve.

Motorized workshop presses with double stanchions and fixed head D series

D series

Hydraulic presses of double stanchion with fixed headstock

Motorized workshop presses with double stanchions, double effect and anti-gyro cylinder and the front is graphed and has sensors, pedal-controlled.

Motorized hydraulic presses with double stanchions and moveable head: L series

L series

Hydraulic presses of double stanchion with headstock lateral displacement

Motorized workshop presses with double stanchions, moveable head, double effect and anti-gyro cylinder and the front is graphed and has sensors, electronic pedal-controlled.

Motorized workshop presses with double stanchions and fixed bed type: F series

F series

Hydraulic presses of double stanchion with fixed table

Motorized workshop presses with double stanchions and fixed bed type. Double effect and anti-gyro cylinder and the front is graphed and has sensors, electronic pedal-controlled. Available with fixed or moveable head. Allows installation of hydraulic cushion or ejector.
