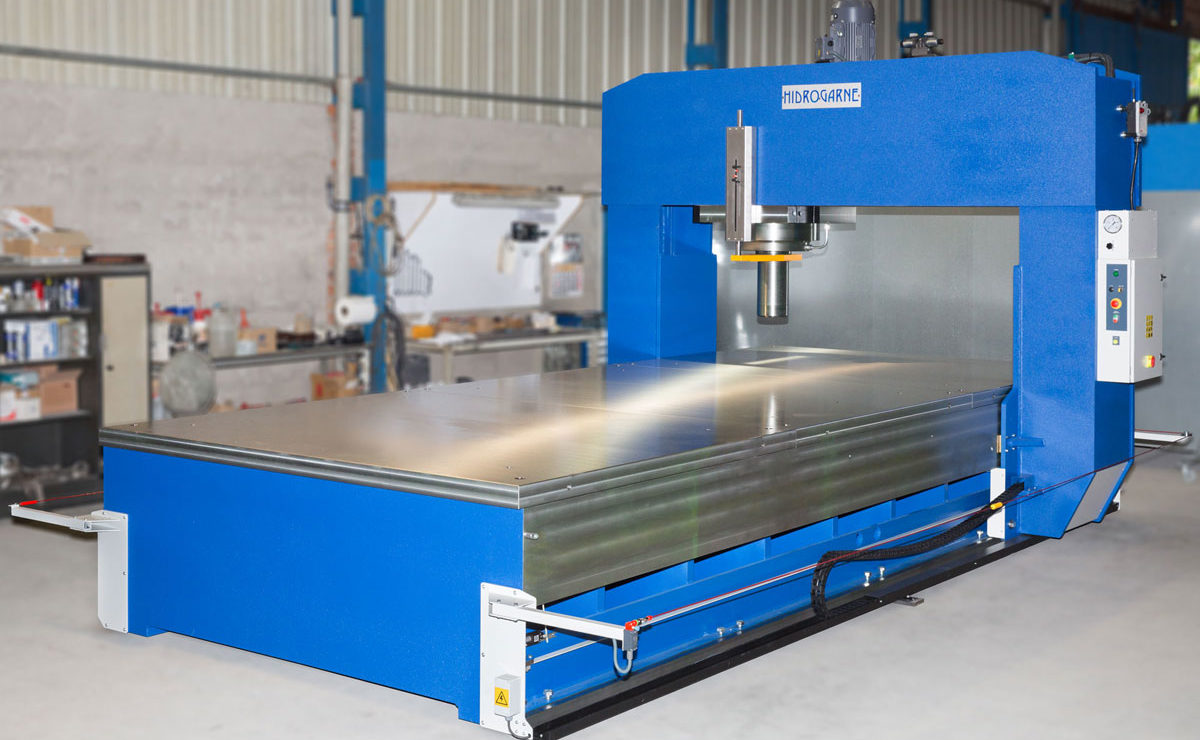

We present you the HIDROGARNE motorized hydraulic press with sliding frame and moveable headstock TL-400/6000 model especially designed for the straightening of electro welded structures and flame cut sheets.

Its design facilitates the loading and unloading of large volume parts, sheets or structures. It allows the different pressing points to be accessed without the need to move the part thanks to the lateral displacement of the cylinder and the longitudinal displacement of the bridge.

It consists of an electro welded structure made solely of ST-52.3 steel. It is stabilized and machined at the end of the structural welding process to ensure perfect parallelism and precision. Calculated and designed by finite software with level 5 structural resistance. With all this, we always guarantee our high precision and quality standards.

The longitudinal displacement of the bridge is carried by frequency inverter and cogged belt to ensure precise and sensitive slides. The lateral movement of the head is motorized.

The cylinder is double acting with a lapping liner, chrome plunger and maintenance-free anti wear guides, it’s fitted with a removable and interchangeable hold-down plate to avoid the deterioration of the plunger and machined at the end to adapt tools. Anti-turning of the cylinder and a squared front with stroke endings come as standard which enable us to conveniently regulate the cylinder stroke.

The motorised two-speed hydraulic unit has automatic rapid speed disconnection. It includes a cylinder decompression valve. A pressure regulator comes as standard which allows the regulation of the most appropriate pressure for each kind of pressing.

It works with hydraulic pressure lower than 320 bar to ensure the greater durability of the hydraulic system as a whole.

The control panel features a switch enabling the user to select the desired type of work in a manual or semi-automatic position and a switch to select either the fast approach speed or slow operational speed.

Operation is carried out by means of a pendant control station with an emergency stop and low-voltage operation. It includes an operation confirmation button.

Safety is guaranteed by the use of a line-operated safety installed on the perimeter.

It is supplied with a glycerin gauge with reading in tones, hydraulic oil and an instructions manual.

As all our hydraulic presses, it meets and satisfies all the essential health and safety requirements in accordance with the EC standard.

Technical features

  • Force: 400 TN
  • Motor power: 11 KW
  • Piston stroke: 300 mm
  • Maximum pressure: 319 bar
  • Approach speed: 10 mm/s
  • Work speed: 3 mm/s
  • Return speed: 18 mm/s
  • Frontal light: 2.560 mm
  • Table measures: 6000×2500 mm
  • Maximum vertical light: 700 mm
  • Headstock displacement: 1.900 mm
  • Frame displacement: 4.900 mm
  • Working height: 800 mm
  • Total length: 6.000 mm
  • Total width: 3.650 mm
  • Total height: 3.250 mm
  • Weight approx.: 28.500 Kg
