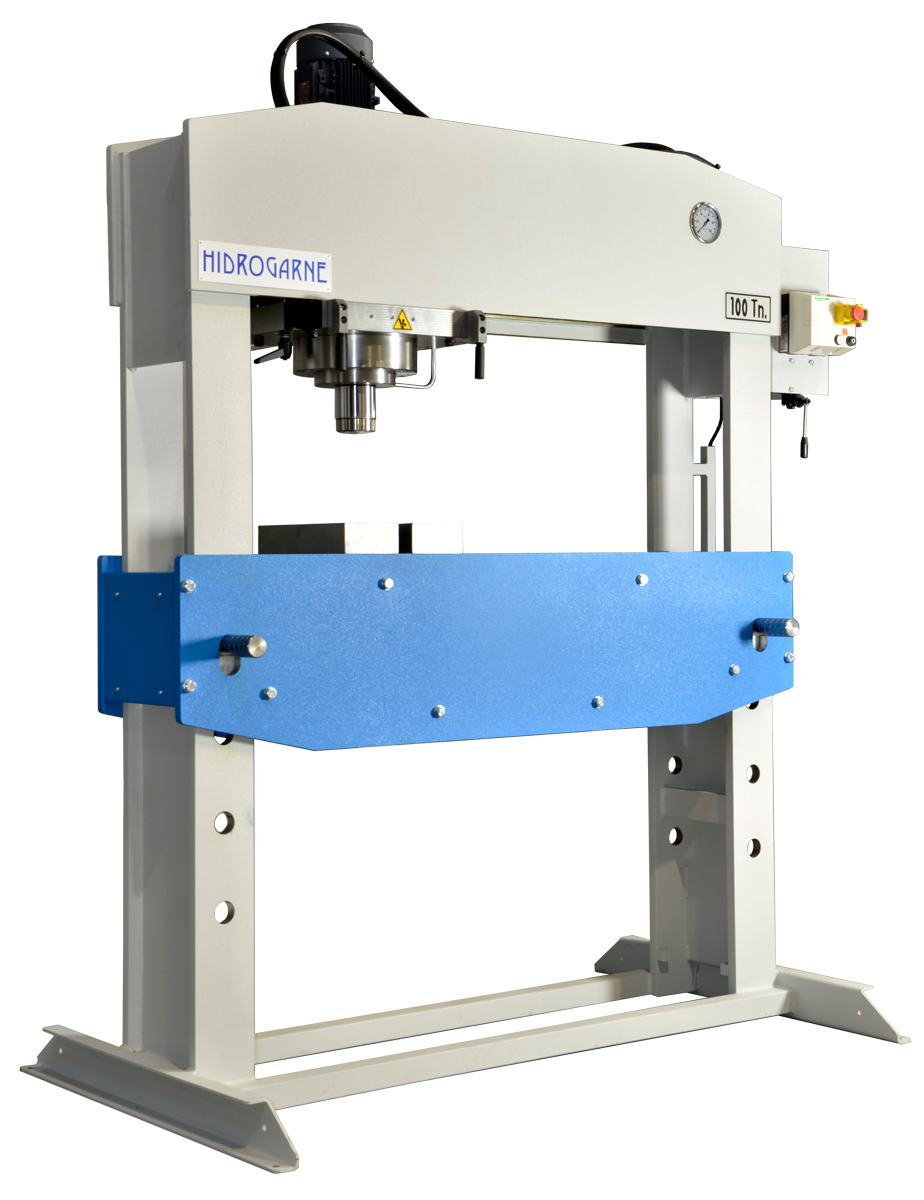

• Motorized hydraulic presses with double stanchions S series mod. SD-100
    SD-100 model.  Standard
  • SL-100 standard Motorized hydraulic press with double stanchions
    SL-100 model. Standard

Workshop presses

We have designed the S-series workshop presses with four different power ranges, from 80 to 200 tonnes.

Specifically designed to perform work involving extraction, threading, straightening, etc.

This series works with hydraulic pressure lower than 320 bar to ensure the greater durability of the hydraulic system as a whole.

Structure

S-series hydraulic presses consist of an electro welded structure of 4 stanchions with open sides.

These models feature a mobile bed which enables the equipment to be positioned at different heights. The equipment is secured by means of two center pins located beneath the bed. The raising and lowering system is operated by means of chains activated by the press cylinder. It inlcudes two support flat blocks.

Two different models are available:

  • SD models: This model features a fixed headstock.
  • SL models: This model is equipped with a headstock lateral displacement and provided with a manual locking system. Moved by wheels.

Cylinder and hydraulic unit

The cylinder is double acting with chrome plunger and maintenance-free anti wear guides, it’s fitted with a removable and interchangeable hold-down plate to avoid its deterioration.

One-speed motorized hydraulic unit.

Glycerin gauge with reading in tonnes.

Operation is carried out by means of a lever-operated hydraulic distributor.

Electric installation and safety

Electric installation equipped with an engine guard and emergency stop device.

They are supplied with an instructions manual.

It meets and satisfies all the essential health and safety requirements in accordance with the EC standard.

FEATURES

Model SD-80 SD-100 SD-150 SD-200
Power t 80 100 150 200
Motor power kw 3 3 4 5,5
Piston stroke mm 250 250 250 250
Maximum pressure bar 320 320 320 350
Working speed mm/s 3,8 3,1 3.1 3.1
Return speed mm/s 4,7 4,1 4 4,8
Headstock displacement mm
Frontal light mm 1050 1050 1050 1050
Lateral light mm 210 230 290 290
Max. vertical light mm 1020 1020 860 815
Bed light mm 255 285 355 355
Total front mm 1530 1595 1660 1660
Total lateral mm 980 980 1180 1180
Total height mm 2275 2315 2405 2470
Weight kg 690 930 1500 1875



Model SL-100 SL-150 SL-200
Power t 100 150 200
Motor power kw 3 4 5,5
Piston stroke mm 250 250 250
Maximum pressure bar 320 320 350
Working speed mm/s 3,1 3.1 3.1
Return speed mm/s 4,1 4 4,8
Headstock displacement mm 1050 1000 1000
Frontal light mm 1500 1500 1500
Lateral light mm 280 340 340
Max. vertical light mm 960 955 915
Bed light mm 345 405 405
Total front mm 2090 2150 2150
Total lateral mm 1180 1180 1180
Total height mm 2660 2805 2855
Weight kg 1830 2350 2620

Optional accessories

  • Manual elevation table equipped with manual spiral crown reducer.
  • Hydraulic unit with two speed.
  • Front pressure regulator.
  • 415 mm long folding tools set. Promecam clamping system.
  • Additional manual pump with one speed, it allows two kind of operation manual and motorized.
  • Anti-turning for the cylinder.
  • Set of 7 pushers with adapter and plate (Ø 10-12-15-17-20-25-30 mm)
  • Set of “V” blocks.
